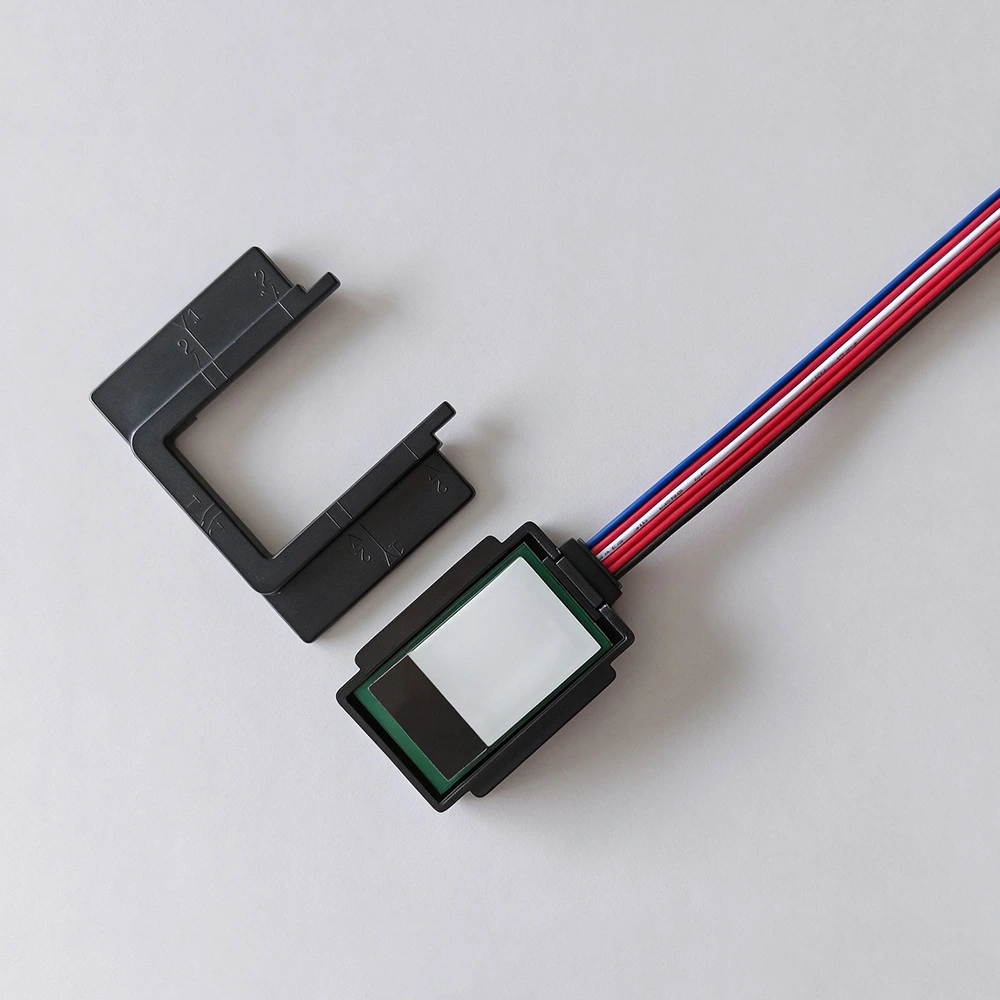

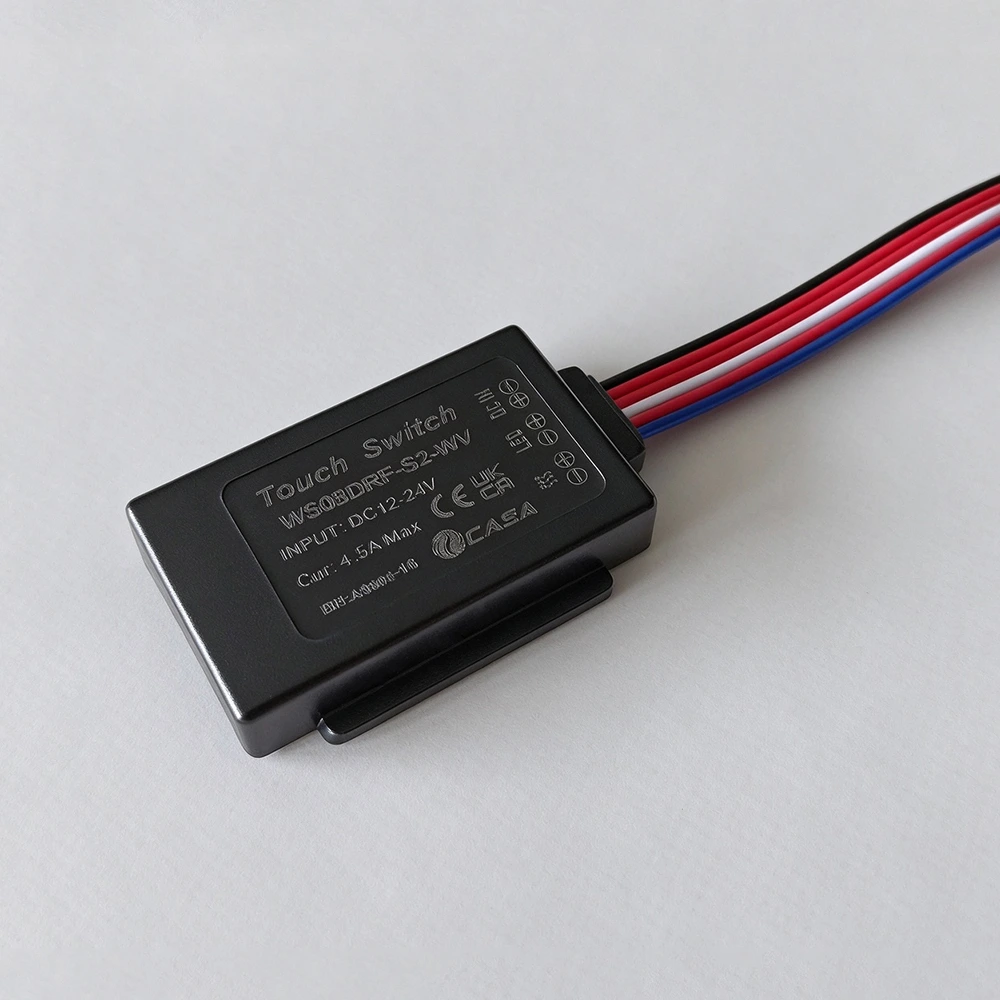

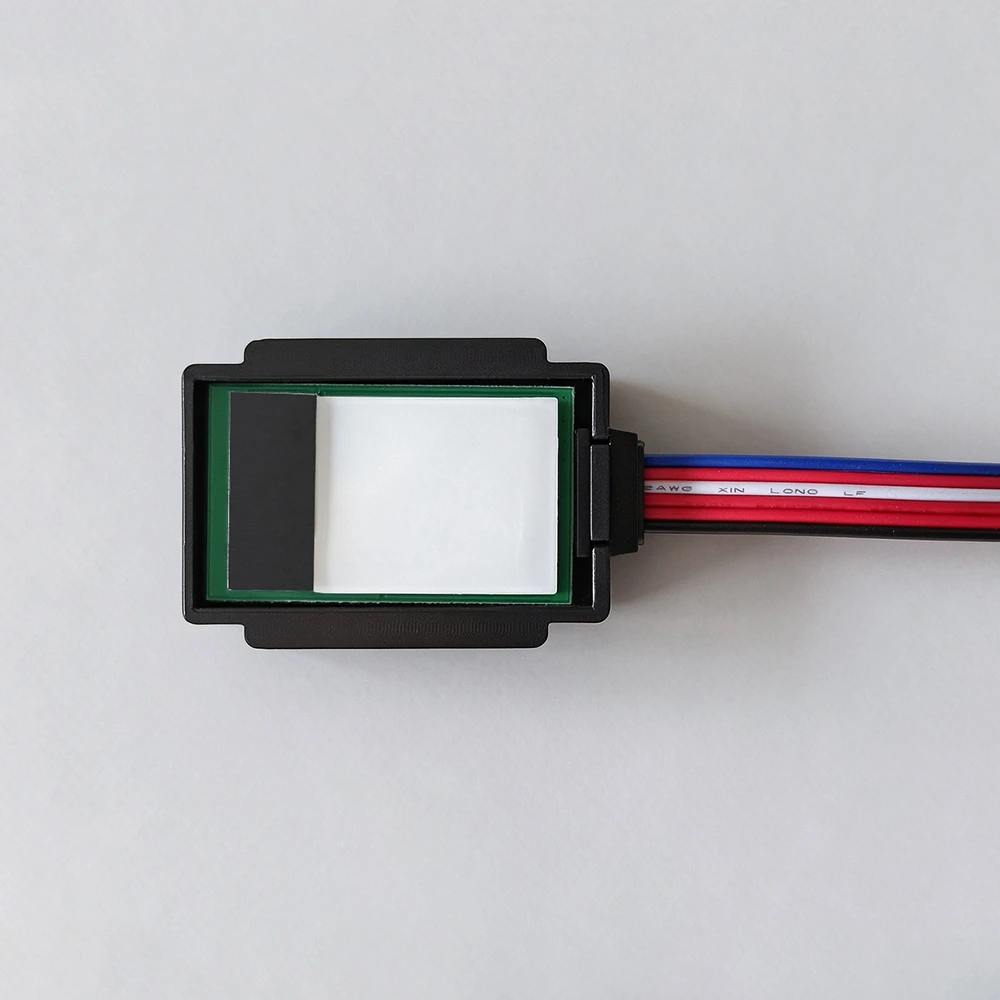

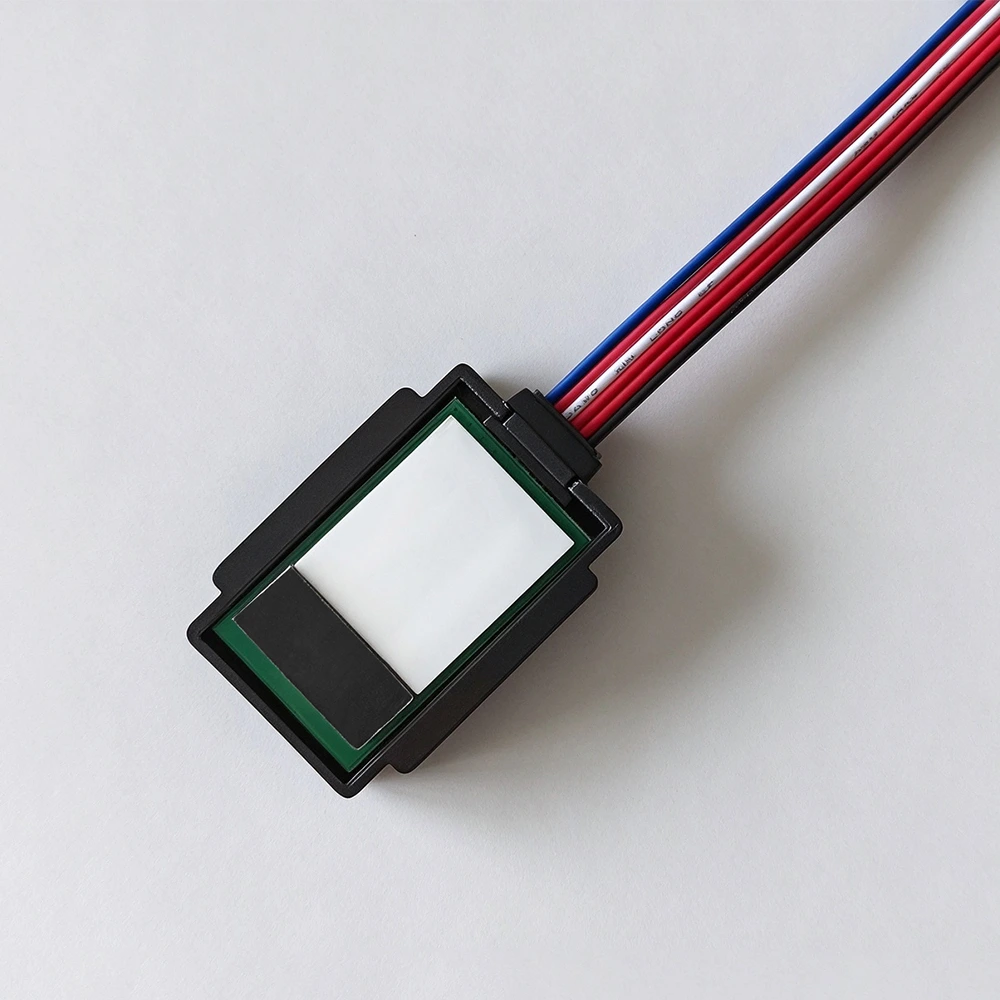

WS08DRF-S2 Mirror Infrared Hand Sweep Switch with Single-Color Stepless Dimming & Sync Anti-Fog
This bathroom mirror touch sensor switch delivers reliable, moisture-resistant performance for daily use. Designed for smart mirrors, vanity lights and similar fixtures, it responds instantly to a light touch and supports long-term, high-frequency operation.
Other models in this series
Specifications
SKU WS08DRF-S2-WV
Product Weight 23g
Operating Voltage DC12-24V
Operating Current 25mA
Switching Current 5A
Anti-Fog Output yes
Dimming Mode Stepless Dimming
Brightness Adjustment Range 5%-100%
Color Temperature Adjustment Range —
Applicable Glass Thickness 3-6mm
Control Type Active Infrared Sensor
Sensing Distance 10-15cm
Button Backlight White / Dim White
Sensor Head Dimensions 50*37*10mm
This bathroom mirror touch sensor switch delivers reliable, moisture-resistant performance for daily use. Designed for smart mirrors, vanity lights and similar fixtures, it responds instantly to a light touch and supports long-term, high-frequency operation.
